MCOD-0001-013 - Datasheet
MBA
Category Information

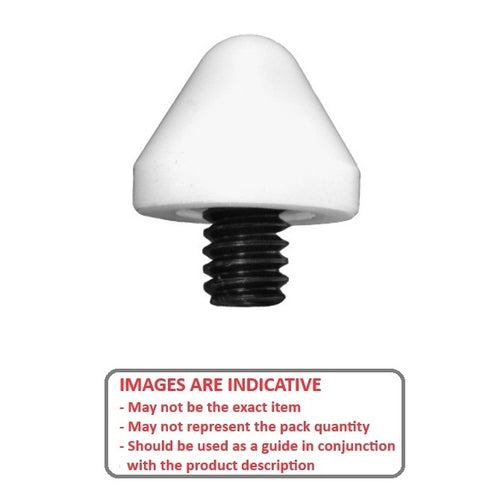

Mounts - ConeCone Mounts. This is the main category in this series
- Delrin offers non-marring attribute.
- For nesting cylindrical or curved parts. Also provides resting point without limiting access to part.

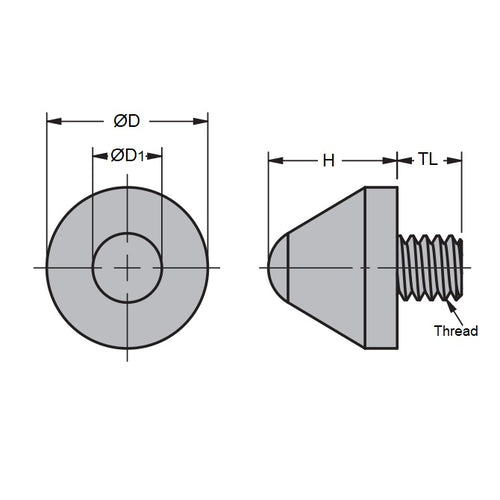

Product Data
- Thread : 1/4-12 UNC 2A
- Cone Height
12.70
mm
(Equiv. 0.5 in.) - Thread Length
6.35
mm
(Equiv. 0.25 in.) - Tip Radius 3.96 mm
Product Compliance and Data
Additional Resources
Cross References
- CMM-14075
- CMM14075
