DB-0041-H-022 - Datasheet
MBA
Category Information
Tools - Drill Bits - StandardStandard Drill Bits Tools. Extensive range of drill bits, from larger standard sizes down to as small as 0.32mm micro miniature sizes. Sutton - PN - Bordo.
- This category will be discontinued when the remaining items are sold.
- All items are priced to quit.
- Backorders or orders for previously listed items in the category will only be available for very large orders.
- Lengths shown are based on standard stock but may vary.
Product Data
Deleted Item. Available while stocks last. Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Diameter
:
0.41
mm
(Equiv. 0.016 in.) - Material High Speed Steel

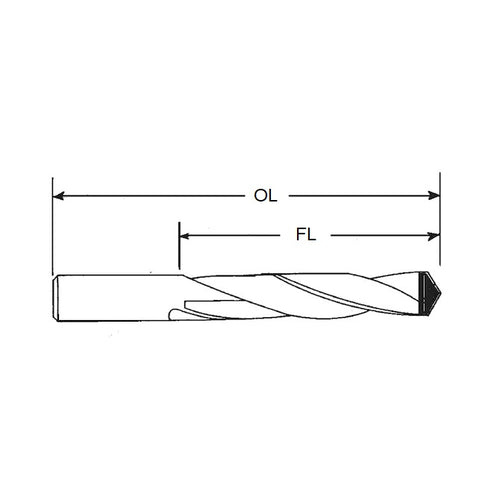

- Overall Length (may vary)
22.23
mm
(Equiv. 0.875 in.) - Gauge 78
- Finish Bright
- Flute Length 4.76 mm
- Material High Speed Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Sutton 023182
- Bordo 2013-78
- 201378
